Output

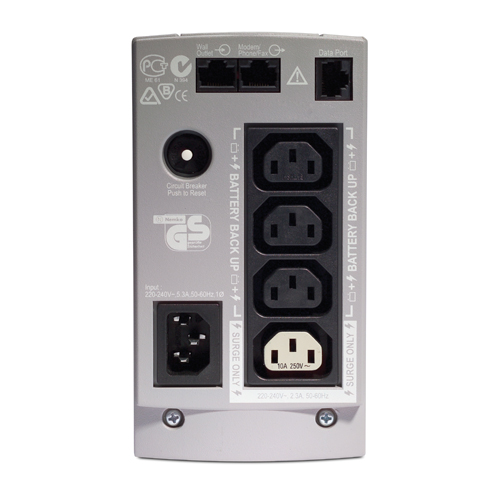

Output Power Capacity 400 Watts / 650 VA Max Configurable Power 400 Watts / 650 VA Nominal Output Voltage 230V Output Connections (1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Surge Protection)
Input
Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections IEC-320 C14
Cord Length 2 meters
Input voltage range for main operations 180 - 260V
Input voltage adjustable range for mains operation 160 - 282V
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 8 hour(s)
Replacement Battery RBC17 RBC™
Quantity 1
Typical Backup Time
at Half Load 14.8 minutes (200 Watts) Typical Backup Time
at Full Load 4.7 minutes (400 Watts) Runtime Chart Back-UPS CS
Communications & Management
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and FilteringSurge energy rating 320 Joules
PhysicalMaximum Height 165.00 mm Maximum Width 91.00 mm Maximum Depth 284.00 mm Net Weight 6.03 KG Shipping Weight 7.31 KG Shipping Height 494.00 mm Shipping Width 185.00 mm Shipping Depth 415.00 mm
