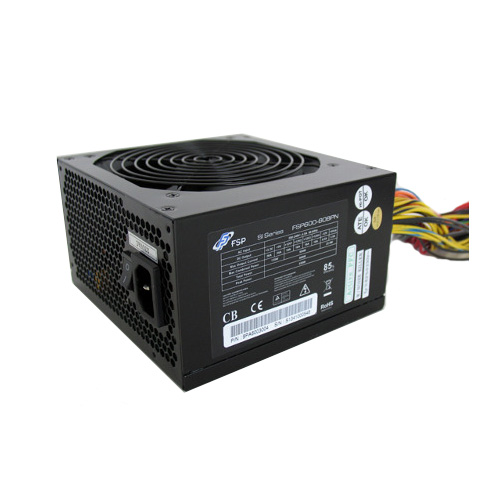

FORTRON FSP600-80BPN SI Series

• Energy management
Nominal power 600 W
Peak power 650 W
AC input voltage 200 - 240 V
AC input frequency 50 Hz
Voltage tolerance 10 %
Frequency tolerance 5 %
Input current 4 A
Power factor 0.98
Power Factor Correction (PFC) type Active
DC output voltage +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Combined power (+3.3V) 85.8 W
Combined power (+12V) 504 W
Combined power (+5V) 120 W
Combined power (-12V) 6 W
Combined power (+5Vsb) 17.5 W
Max output current (+3.3V) 26 A
Max output current (+12V) 18 A
Max output current (+5V) 24 A
Max output current (-12V) 0.5 A
Max output current (+5Vsb) 3.5 A
Hold time 16 ms
Efficiency 85 %
Power protection features Over current, Over voltage, Short circuit, Under voltage

• Special features
Form factor ATX
ATX version 2.31
EPS version 2.92
Colour of product Black
Parallel processing technology support CrossFire/SLI
• Cooling
Fan diameter 120 mm
Fan speed 1650 RPM
Fan location top
Number of fans 1
Cooling type active
• Connectivity
Motherboard power connector 24-pin ATX
Number of SATA power connectors 6
Peripheral (Molex) power connectors (4-pin) 2
PCI Express power connectors (6+2 pin) 2
CPU power connector (4+4 pin)
Floppy drive power connector 1
Cabling type fixed
• Sound emission
Noise level 30 dB
• Weight & dimensions
Width 150 mm Depth 140 mm Height 86 mm
Weight 1850 g
• Certificates
RoHS compliance
Electromagnetic compatibility 2004/108/EEC
Safety EN60950-1: 2006+A11+A1
Certification IEC 950, TUV EN 60950, NEMKO + CB REPORT, CE
• Environmental conditions
Operating temperature range (T-T) 0 - 40 °C
Storage temperature range (T-T) -40 - 70 °C
Operating relative humidity range 5 - 85 %
Storage relative humidity range 5 - 95 %
• Technical details
ATX Power connector (24-pin)
Overload protection
Power supply type ATX
Rise time 20 ms
Short protection
