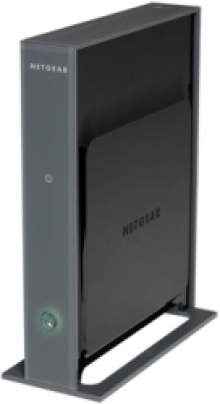

802.11n RangeMax NEXT  5GHz wireless Access Point/Bridge
• Creates a 5 GHz Wireless-N access point by connecting to an existing router/gateway
• More wireless channels, less interference and better connections using 5 GHz
Wireless-N band
• Boosts wireless performance of notebooks with embedded Wireless-N†
• Automatic Quality of Service (QoS) ensures prioritization of voice, video and gaming traffic
Features
• Plug and play installation—automatic configuration
• Connects to any existing router/gateway
• Simple “Push ‘N’ Connect” using Wi-Fi Protected Setup (WPS)
• Supports wireless “ad-hoc” mode for wireless LAN peer-to-peer gaming
• Supports multicast point-to-multi-point HD video streaming
• Connect multiple bridges to WNHDE111 Access Point2
System Requirements
Broadband (cable, DSL) router or
gateway with built-in DHCP server
5 GHz Draft 802.11n and/or 5.0
GHz 802.11a wireless adapter.
Alternatively, an Ethernet adapter and
cable for each computer
Microsoft® Windows® Vista™, XP, 2000,
Mac® OS, UNIX®, or Linux®
Internet Explorer® 5.0 or Netscape 4.7
or higher
Standards
IEEE802.11n draft specification, IEEE
802.11a, 5.0 GHz
Physical Specifications
Dimensions: 225.5 x 172 x 39 mm
(8.9 x 6.8 x 1.5 in)
Weight: .56 kg (1.2 lb)
Ease of Use
Auto configures in AP or bridge mode
based on type of Ethernet enabled
device it connects to
Easy secured setup with Wi-Fi
Protected Setup (WPS) push-button
Smart Wizard® simplifies setup
by automatically detecting and
configuring your devices
Security
Wi-Fi Protected Access, Pre-Shared
Key (WPA-PSK, WPA2-PSK)
Wired Equivalent Privacy (WEP) 64-bit,
128-bit encryption
Warranty
NETGEAR 1-year Warranty
Package Contents
5 GHz Wireless-N HD Access Point/
Bridge (WNHDE111)
Stand
Ethernet cable
Setup CD
12V, 1.0A power adapter, localized to
country of sale
Warranty/support information card
