Application:
Intel Socket 1156, 775
Up to 70 Watts

Ultra Quiet Coolers for Intel Socket 1155/1156

The Intel Core i5 for socket 1156 is expected to be released in Q3. Multi-compatible with both the new sockets and 775, this new Alpine series is definitely a perfect choice for those who would like to go for a future-proof cooler.

Main features

•  Ultra quiet 80mm PWM fan with low noise impeller
•  Optimised heatsink efficient heat dissipation
•  Patented fan holder eliminates the buzzing sounds
•  Fluid dynamic bearing extends service life
•  Pre-applied MX-2
•  Easy installation with push pins

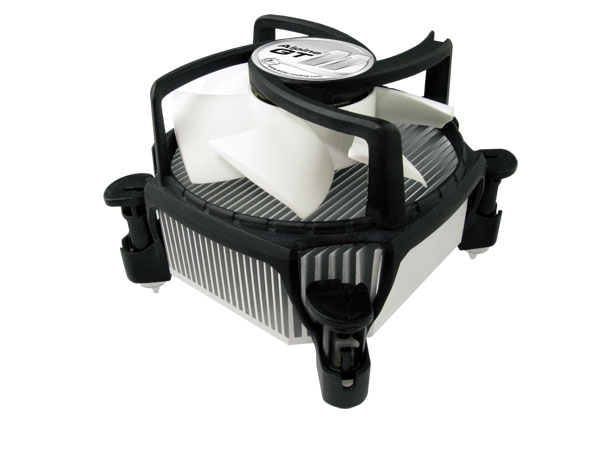

Highly price competitive cooler – Alpine 11 GT
The cost-effective Alpine 11 GT is targeted for users who look for a quiet and efficient cooler.
At a reasonable price, the cooler feature some high performance components. The Alpine 11 GT is equipped an 80mm PWM fan. With PWM function, the fan runs at the necessary speed in order to offer sufficient cooling at the lowest possible noise level. The low noise impeller keeps the fan as quiet as 0.3 Sone – even at full speed.
The Alpine 11 GT is designed with an optimised heatsink and the pre-applied MX-2 to offer optimal heat dissipation. The Intel push pins guarantee easy and quick installation. With these outstanding features, the Alpine 11 GT offers the best price/performance ratio for mainstream users.

Heatsink   89 L x 89 W x 75 H mm
Fan   80mm x 1
Fan speed   500 -2000 RPM (Controlled by PWM)
Air flow   28.6CFM / 48.5 m3/h
Maximum Cooling Capacity   70 Watts
Weight   286g
