Application:
Intel Socket 1156, 775
Up to 90 Watts

Ultra Quiet Coolers for Intel Socket 1155/1156

The Intel Core i5 for socket 1156 is expected to be released in Q3. Multi-compatible with both the new sockets and 775, this new Alpine series is definitely a perfect choice for those who would like to go for a future-proof cooler.

Main features

•  Ultra quiet 92mm PWM fan with low noise impeller
•  Optimised heatsink efficient heat dissipation
•  Patented fan holder eliminates the buzzing sounds
•  Fluid dynamic bearing extends service life
•  Pre-applied MX-2
•  Easy installation with push pins

Highly price competitive cooler – Alpine 11

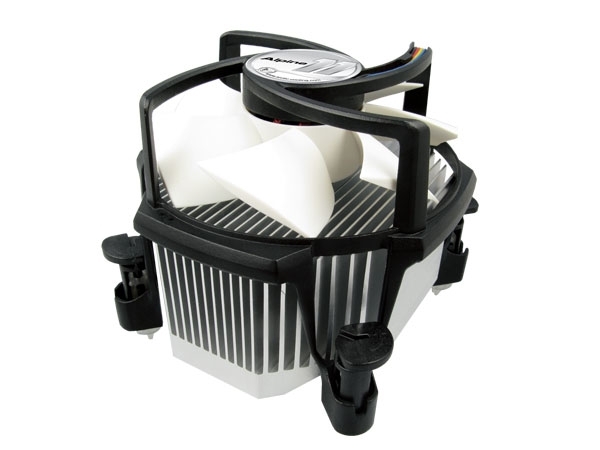

The cost-effective Alpine 11 is targeted for users who look for a quiet and efficient cooler.
At a reasonable price, the cooler feature some high performance components. The Alpine 11 is equipped a 92mm PWM fan. With PWM function, the fan runs at the necessary speed in order to offer sufficient cooling at the lowest possible noise level. The low noise impeller keeps the fan as quiet as 0.4 Sone – even at full speed.
The Alpine 11 is designed with an optimised heatsink and the pre-applied MX-2 to offer optimal heat dissipation. The Intel push pins guarantee easy and quick installation. With these outstanding features, the Alpine 11 offers the best price/performance ratio for mainstream users

Heatsink   100 L x 96 W x 87 H mm
Fan   92mm x 1
Fan speed   900 -2000 RPM (Controlled by PWM)
Air flow   36CFM / 62 m3/h
Maximum Cooling Capacity   90 Watts
Weight   370g
