ASUS

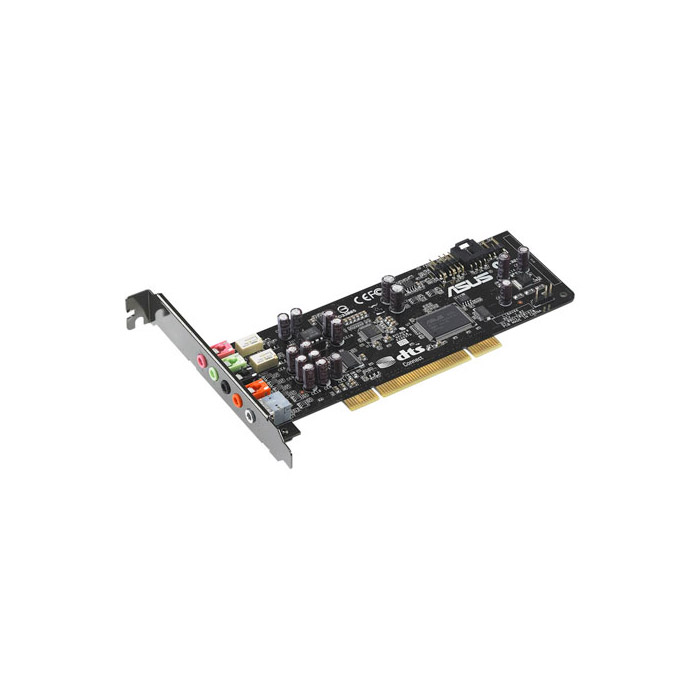

ASUS XONAR DS

118³³ лв. (60⁵⁰ eur)

Наличност: Обадете се

Информация за продукта

I/O Ports
Bus Compatibility: PCI v2.2
Analog Output Jack: 3.50mm mini jack *4 (Front/Side/Center-Subwoofer/Back)
Analog Input Jack: 3.50mm mini jack *1 (Line-In/Mic-In)
Other line-level analog input (for CD-IN/TV Tuner): Aux-In (4-pin header on the card)
Digital S/PDIF Output: High-bandwidth Optical Connector supports 192KHz/24bit (shared with Back surround output jack)
Front-Panel Header: Intel HDA front-panel compatible and supports HP jack-detection and automatically switch audio output from back-panel to front
S/PDIF Header: Additional SPDIF-out header for connecting graphics card with HDMI audio output

Audio Performance
Output Signal-to-Noise Ratio (A-Weighted): Up to 107 dB
Input Signal-to-Noise Ratio (A-Weighted): 100 dB
Output THD+N at 1kHz: Up to 0.0017% (-95dB)
Input THD+N at 1kHz: Up to 0.0017% (-95dB)
Frequency Response (-3dB, 24-bit/96kHz input): <10Hz to 48kHz
Output/Input Full-Scale Voltage 1 Vrms (3Vp-p)
Sample Rate Conversion Quality:
Almost lossless, high-fidelity floating-point filters, with:
-140dB THD+N (typical value for 44.1K->48KHz, 24bit)
145dB Dynamic Range (typical value for 44.1K->48KHz, 24bit)

Main Chipset
Audio Processor: ASUS AV200 High-Performance Sound Processor (Max. 192KHz/24bit)
24-bit D-A Converter of Digital Sources: Wolfson WM8776* 1 (108dB SNR, Max. 192kHz/24bit) / Wolfson WM8766*1 (103dB SNR, Max. 192kHz/24bit)
24-bit A-D Converter for Analog Inputs: Wolfson WM8776* 1 (102dB SNR, Max. 96kHz/24bit)

Sample Rate and Resolution
Analog Playback Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16/24bit for all channels
Analog Recording Sample Rate and Resolution: 44.1K/48K/96KHz @ 16/24bit
S/PDIF Digital Output: 44.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital, DTS, WMA-Pro
ASIO 2.0 Driver Support: 44.1K/48K/96K/192KHz @ 16/24bit
