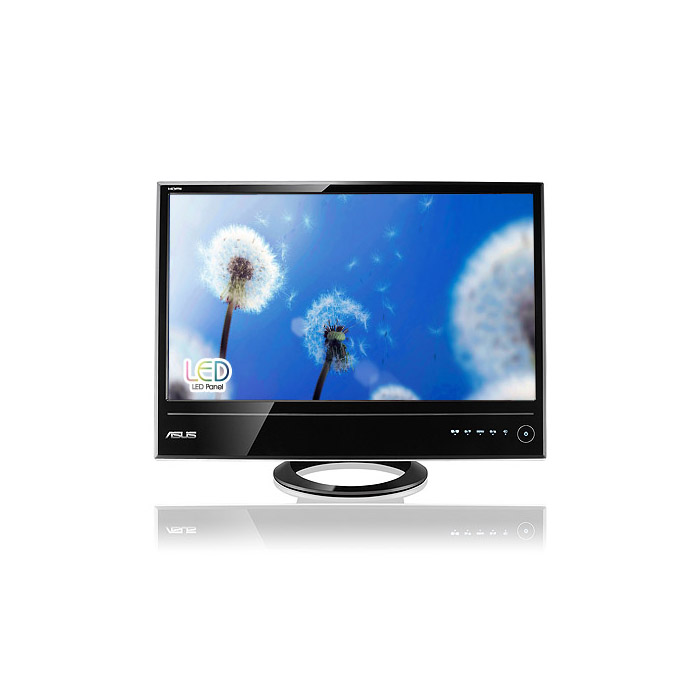

ASUS ML248H

Display
Panel Size : 24.0"(61.0cm) 16:9 Wide Screen LED-backlit panel
True Resolution : 1920x1080
Pixel Pitch : 0.2652mm
Brightness(Max) : 250 cd/㎡
ASUS Smart Contrast Ratio (ASCR) : 10000000:1
Viewing Angle (CR>=10) : 170°(H)/160°(V)
Response Time : 2ms (Gray to Gray)
Display Colors : 16.7M

Video Feature
Trace Free Technology
SPLENDID Video Preset Modes : 6 Modes
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
HDCP support

Convenient Hotkey
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Contrast Adjustment
Input Selection

I/O Ports
Signal Input : HDMI 1.3,D-Sub,DVI-D (via HDMI-to-DVI cable)
AV Audio Input : HDMI 1.3
Earphone jack : 3.5mm Mini-Jack (for HDMI Only)

Signal Frequency
Analog Signal Frequency : 30~83 KHz(H)/ 50~76 Hz(V)
Digital Signal Frequency : 30~83 KHz(H)/ 50~76 Hz(V)

Power Consumption
Power Consumption < 30 W
Power Saving Mode < 1 W

Mechanical Design
Tilt : +20°~-5°
Swivel : Yes

Dimensions
Phys.Dimension(WxHxD): 571.7x430.6x220.mm
Box Dimension(WxHxD): 650x483x171mm

Weight
Net Weight (Esti.): 4.1 kg
Gross Weight (Esti.): 6.1 kg

Regulation Approval
Energy Star®, UL/cUL, CB, CE, FCC, CCC, BSMI, Gost-R, C-Tick, MEPS, VCCI, PSE, J-MOSS, PSB,China Energy Label, RoHS, WEEE, Windows 7.0 WHQL
