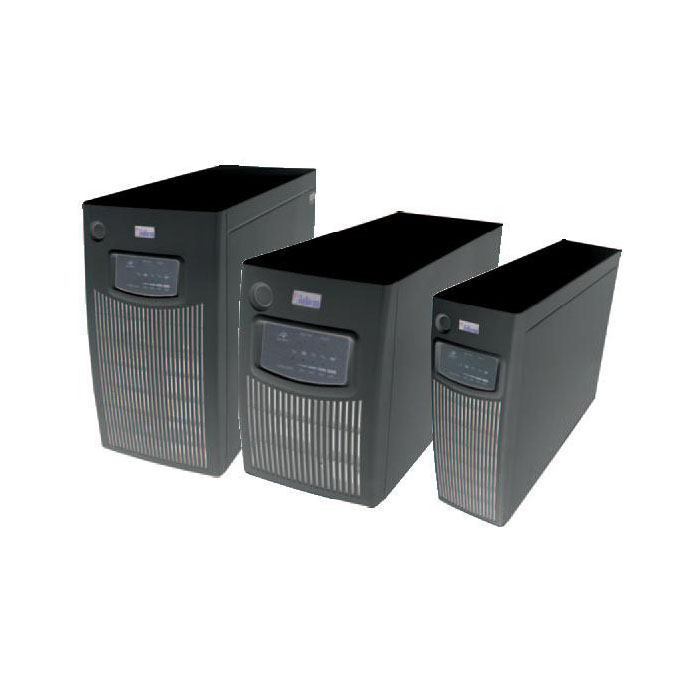

INFORM SINUS SS 220

Input
Power (kVA) 2
Voltage 160 - 280 VAC
Frequency 50 / 60 Hz. ± 5 %
Power Factor >98%

Output
Voltage 220VAC / 230VAC
Voltage Regulation ±%2
Power Factor 0,7 lagging
Frequency 50 / 60 Hz (Auto Detection)
Frequency Regulation ±0,5%
Harmonic Distortion < 3 % (For Linaer Loads)
Crest Factor 3:1
Overload Capacity 100% - 120% for 60 seconds, 120% - 150% for 10 seconds

Battery
DC Voltage 72V ( 6 x 12V 7ah)
Back up Time Full Load 8 min.
Back up Time Half Load 20 min.
Battery Type Maintenance - Free Sealed lead acid
Recharge Time 8 Hours(To 90% of Full Capacity)

Efficiency
Whole > 85%
Inverter > 90%

Transfer
Power failure & recovery 0ms

Noise Level
1m Distance <52 dBA

LED Indicators
Line Input, inverter, bypass, fault, overload, battery low, self-test, load/battery level

Alarm
Line Failure, Battery Low, Transfer to Bypass, Failure Events

Protection
Short circuit, over temperature, overload, high voltage, battery low

Communication
Real RS232 Interface Communication Port and UPS Managament Software

Environment
Operating temperature 0-40 C
Humidity 0-95%

Physical
Outlets 3pcs IEC and 2pcs Schuko

Tower Type
Net Weight(kg) 29
Dimensions (mm) WxHxD 130x475x360

Warranty
24 months for product
12 months for batteries
