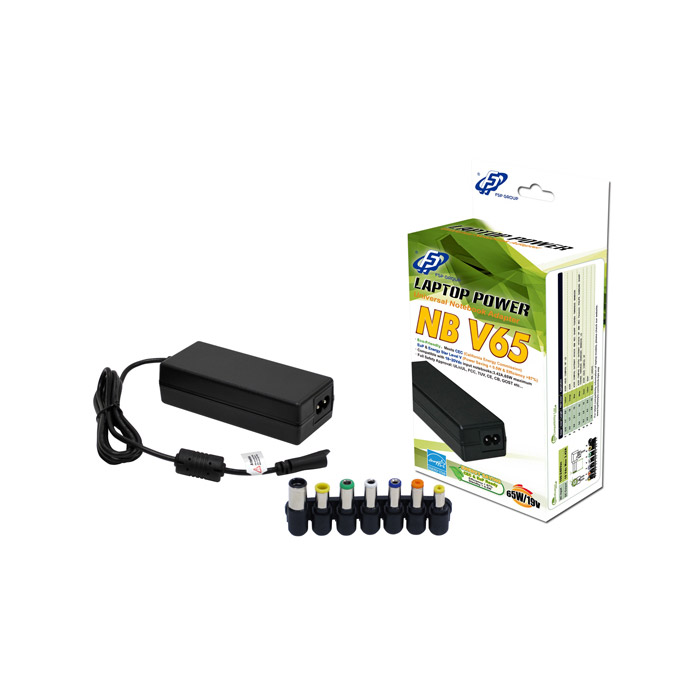

FORTRON NB V65 65W
• GENERAL SPECIFICATIONS:
APPLICATIONS: 18~20V | 65-WATT MAX. NOTEBOOK PCs
MAXIMUM OUTPUT POWER: 65-WATT | 19V @ 3.42A MAXIMUM
CAPACITY: 3.42A
VOLTAGE: 19V
OUTPUT CONNECTORS: 7 I-POINT INTERCHANGEABLE CONNECTORS (BARREL TYPE)
CONNECTOR SIZE: VARIES
OPERATING EFFICIENCY: 87% +
OPERATING TEMPERATURE: 0 ~ 40 °C +
OPERATING HUMILITY: 10 ~ 90% NON-CONDENSING
STORAGE TEMPERATURE: -20 ~ 80 °C +
RIPPLE / NOISE: <150 mVpp
SAFETY APPROVAL: UL/cUL, FCC, TUV, CE, CB, GOST
MBTF: 60,000 HOURS @ TYPICAL
OTHER TESTS: 100% HI-POT, 100% BURN-IN @ FULL LOAD
UNIT SIZE: 45.97 mm (W) X 107.95mm (D) X 29.97mm (H)
UNIT WEIGHT: 0.45kg

• INPUT SPECIFICATIONS:
Input Voltage: 100V AC to 240V AC, 47 ~ 63Hz
Power Factor Correction (PFC): AUTO FULL RANGE
Input Protection: Patented Input Fuse Protection
AC INPUT TYPE: STANDARD AC CORD (INCLUDED)

• OUTPUT SPECIFICATIONS:
NUMBER OF OUTPUTS: 1
Output Voltage: +18V ~ +20V DC
Output Current: 3.42A @ +19V DC MAXIMUM
Output Protection: Complete OVP, OCP, SCP Protection
OVP: OVER VOLTAGE OUTPUT PROTECTION
OCP: OVER CURRENT OUTPUT PROTECTION
SCP: SHORT CIRCUIT OUTPUT PROTECTION
