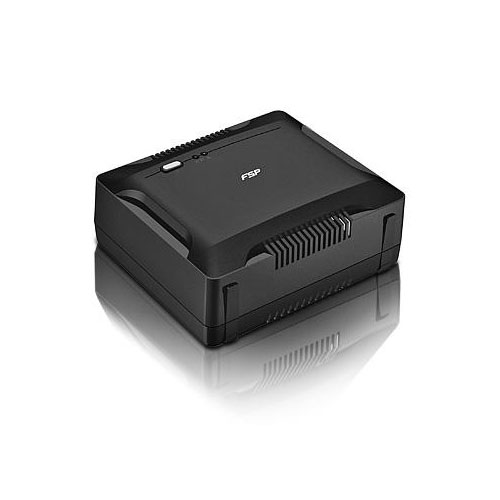

FORTRON NANO 600
Product ID: 45206
• Mnfr Part #: PPF3600210
• Dimensions: 228 x 82.5 x 207 mm
• Warranty: 24 12 months battery months
• Model: NANO 600
• Capacity: 600 VA / 360W
• Manufacturer: FORTRON
• Type: Line-interactive
• Battery: Battery Type & Number:12 V / 7 AH x 1; Backup Time (One PC load@120W):10 min.; Typical Recharge Time:8 hours recover to 90% capacity.

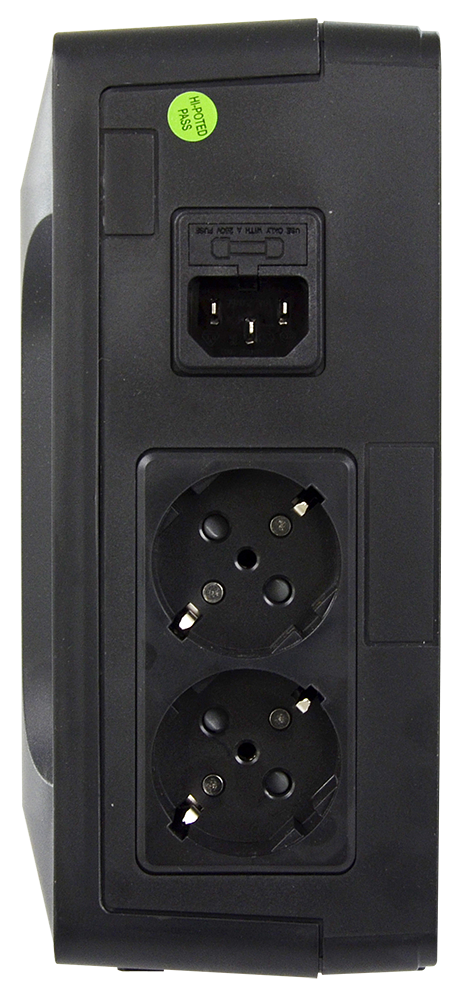

• Interface: Outlet Sockets:2 x Schuko; Management / Optional USB / RS-232 Port:No.
• Standarts: -
• Display: Indicators / Ac Mode:Green lighting; Indicators / Battery Mode:Green flashing every 10 seconds; Indicators / Fault:Red lighting.
• Input: Available Factory Settings:110 / 120 VAC or 220 / 230 / 240 VAC; Input Voltage:180~270 VAC; Input Frequency:50Hz or 60Hz.
• Output: Output Voltage:220V nominal; Output Frequency Range:50 Hz or 60 Hz ±1 Hz; Output Transfer Time (Typical):Typical 2-6 ms; Output Waveform (Batt. Mode):Simulated Sine Wave.
• Environment: Overload Protection:Yes; Discharge Protection:Yes; Overcharge Protection:Yes; Operating Environment / Humidity:0-90%; Operating Environment / Noise Level:No.
• Alarms: Alarm / Battery Mode:Sounding every 10 seconds; Alarm / Low Battery:Sounding every second (Batt. Mode); Alarm / Overload:No; Alarm / Battery Replacement Alarm:??; Alarm / Fault:Continuously sounding,
http://fsp-europe.com/nano-series-600800/
